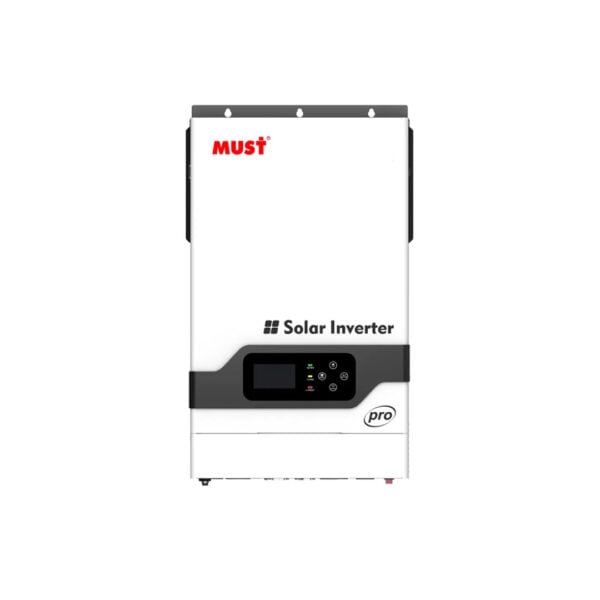

1.5kW MUST PV1800 VPM Hybrid Solar Inverter – 1500W, 12V, 60A MPPT
Overview:
The MUST PV1800 VPM 1.5kW Hybrid Solar Inverter is a compact and efficient off-grid power solution designed for homes, offices, and small energy systems. With 1500W output power and a 12V battery system, this inverter combines solar, battery, and grid power seamlessly to provide uninterrupted energy. It features a built-in 60A MPPT solar charge controller for high-efficiency power conversion and optimized battery charging.
Key Features
Rated Power Output: 1.5kW / 1500W
Battery System Voltage: 12V DC
Pure Sine Wave Output: Safe and stable power for all appliances
Built-In MPPT Solar Controller: 60A for maximum solar efficiency
Wide PV Input Range: Compatible with various solar panel setups
Hybrid Function: Integrates solar, battery, and utility sources
LCD Display: Real-time performance monitoring
Optional WiFi Monitoring: Remote management via mobile app
Compact Design: Ideal for small solar systems and homes
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MUST |
| Model | PV1800 VPM |
| Rated Power | 1500W (1.5kW) |
| Battery Voltage | 12V DC |
| Solar Charge Controller Type | MPPT |
| Solar Charge Current | 60A |
| PV Input Voltage Range | 60V – 450V DC |
| AC Input Voltage | 230V ±10% |
| Output Waveform | Pure Sine Wave |
| Transfer Time | <10 ms |
| Efficiency | Up to 98% |
| Communication Interface | RS232 / USB / WiFi (optional) |
| Dimensions | 100 × 300 × 440 mm (approx.) |
| Weight | 9 kg |
| Warranty | 1 Year |
Applications
Home solar systems
Small offices and shops
Off-grid cabins or backup setups
Rural electrification projects
Benefits
High-performance 60A MPPT for efficient solar charging
Protects appliances with pure sine wave output
Plug-and-play hybrid functionality
Optional WiFi monitoring for smart control
Works with lithium or lead-acid batteries
