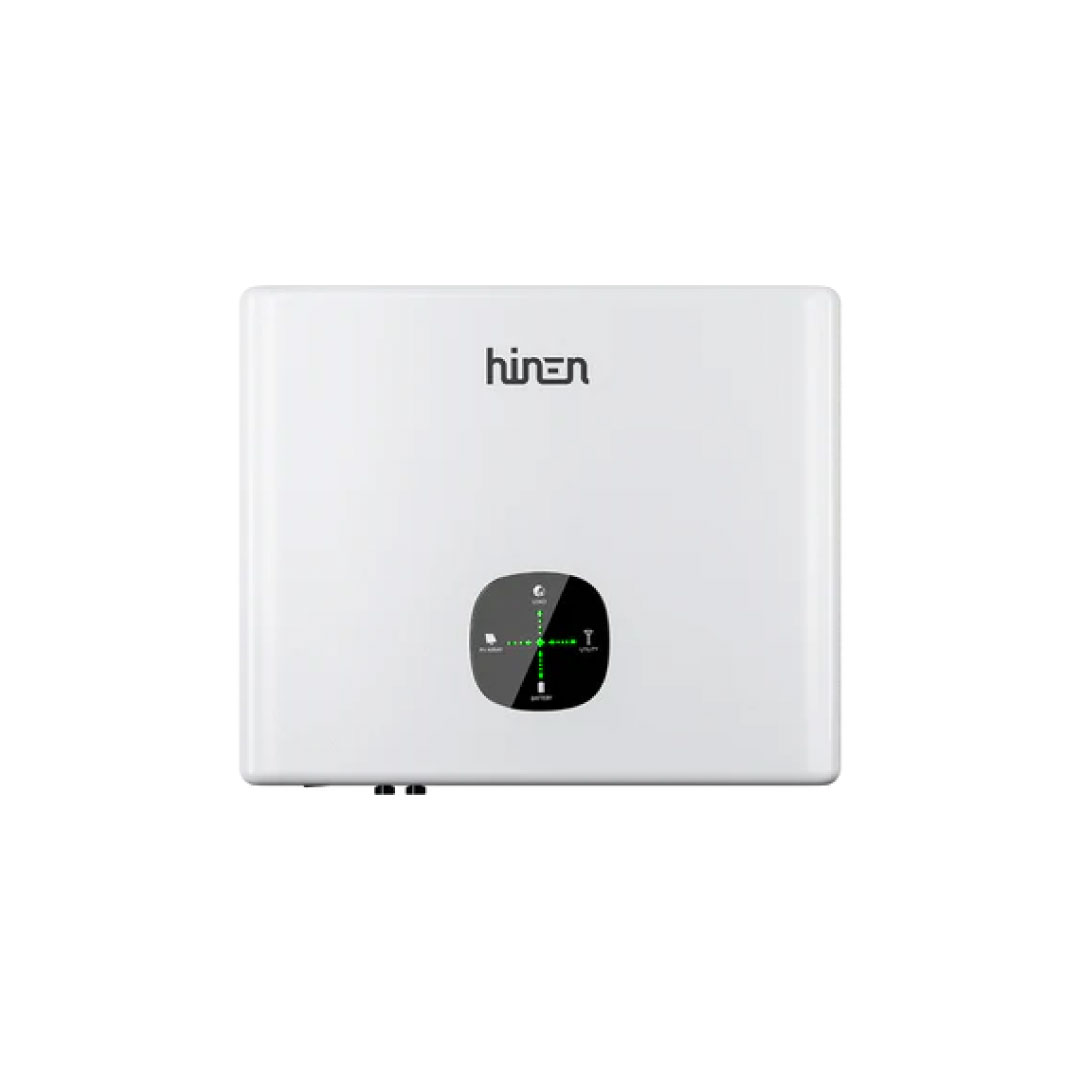

12kW Hinen H12000T Three-Phase Hybrid Inverter – High Voltage, Smart Solar Energy Management
Overview:
The Hinen H12000T 12kW Three-Phase Hybrid Inverter is a high-voltage, intelligent solar inverter designed for residential, commercial, and industrial applications. It efficiently combines solar, battery, and grid energy sources to deliver reliable, clean power. With advanced MPPT technology, smart energy management, and robust three-phase output, it ensures consistent performance even for high-demand systems.
Key Features:
Powerful 12kW three-phase output suitable for large homes, offices, and industrial setups.
Hybrid design supports solar, battery, and grid input for seamless operation.
Compatible with high-voltage lithium batteries for maximum efficiency.
Smart monitoring with built-in Wi-Fi and app support for real-time tracking.
Dual MPPT technology for optimized solar energy harvesting.
Intelligent energy management automatically prioritizes solar power.
Comprehensive protection against overload, short circuit, and over-temperature.
User-friendly LCD and LED display for system monitoring and setup.
Efficient cooling and quiet operation for long-lasting performance.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | H12000T |
| Brand | Hinen |
| Rated Power | 12kW (12000W) |
| Phase Type | Three-Phase |
| Inverter Type | Hybrid (Solar + Battery + Grid) |
| Battery Type | High-Voltage Lithium / LiFePO₄ |
| Battery Voltage Range | 160V – 800V DC |
| AC Output Voltage | 400V ± 5% (Three-Phase) |
| Output Frequency | 50Hz / 60Hz |
| Max PV Input Power | 18,000W |
| MPPT Voltage Range | 200V – 850V DC |
| Max PV Input Voltage | 1,000V DC |
| Max Efficiency | 97.6% |
| MPPT Channels | 2 Independent Trackers |
| Max Charging Current | 50A |
| Communication Interface | RS485 / CAN / Wi-Fi |
| Display | LCD Screen with LED Indicators |
| Protection | Overload, Overvoltage, Over-temperature, Short Circuit |
| Cooling Method | Intelligent Fan Cooling |
| Dimensions (mm) | 560 × 370 × 150 |
| Weight | Approx. 18 kg |
Applications:
Residential solar installations
Commercial and industrial facilities
Off-grid or hybrid three-phase systems
Backup and energy storage solutions
Package Includes:
Hinen H12000T 12kW Hybrid Inverter
User Manual
Communication and monitoring accessories
Mounting brackets
Why Choose the Hinen H12000T:
The Hinen H12000T 12kW Three-Phase Hybrid Inverter offers advanced solar and battery integration, dependable performance, and intelligent power management. It is ideal for users seeking a reliable, high-capacity inverter for demanding off-grid or hybrid applications.
