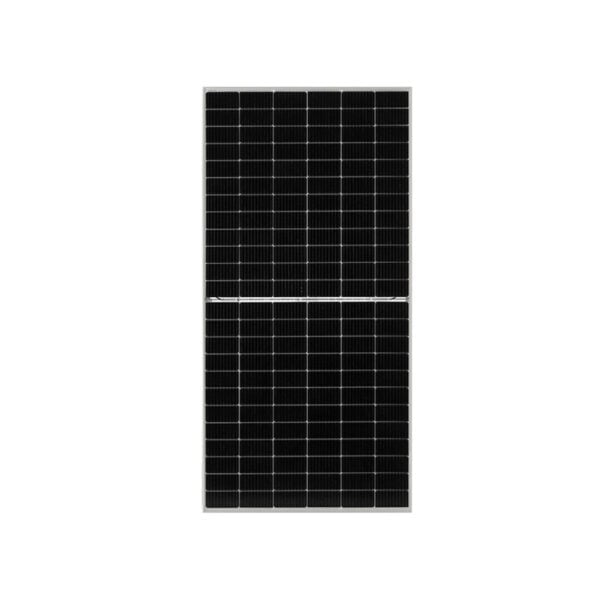

Short Description: The Jinko 520W Monocrystalline Solar Panel delivers high-efficiency, reliable power output for residential, commercial, and industrial solar systems. Equipped with advanced half-cut cell technology, it minimizes energy loss and performs efficiently even in partial shading and low-light conditions.
Key Features
High-efficiency monocrystalline cells for maximum energy generation
Half-cut cell design improves shading tolerance and reduces power loss
Durable tempered glass with anti-reflective coating
Sturdy, corrosion-resistant aluminum frame for outdoor installation
Compatible with off-grid, hybrid, and grid-tie solar systems
Technical Specifications
Specification
Details
Rated Power
520W
Cell Type
Monocrystalline Half-Cut
Module Efficiency
21% – 21.5%
Voltage at Max Power (Vmp)
~41–43V
Current at Max Power (Imp)
~12–12.5A
Open Circuit Voltage (Voc)
~49–51V
Short Circuit Current (Isc)
~12.5–13A
Frame
Anodized Aluminum Alloy
Glass
High-Strength Tempered Solar Glass
Operating Temperature
-40°C to +85°C
Expected Lifespan
25+ Years
Warranty
Standard Manufacturer Warranty
Applications
Residential rooftop solar systems
Commercial and industrial installations
Off-grid homes and hybrid energy systems
Solar water pumping and irrigation
Backup power and battery charging systems
Benefits
High power output reduces the number of panels required
Stable performance in low-light and partially shaded conditions
Long service life with minimal maintenance
Easy integration with modern inverters and lithium battery storage systems
