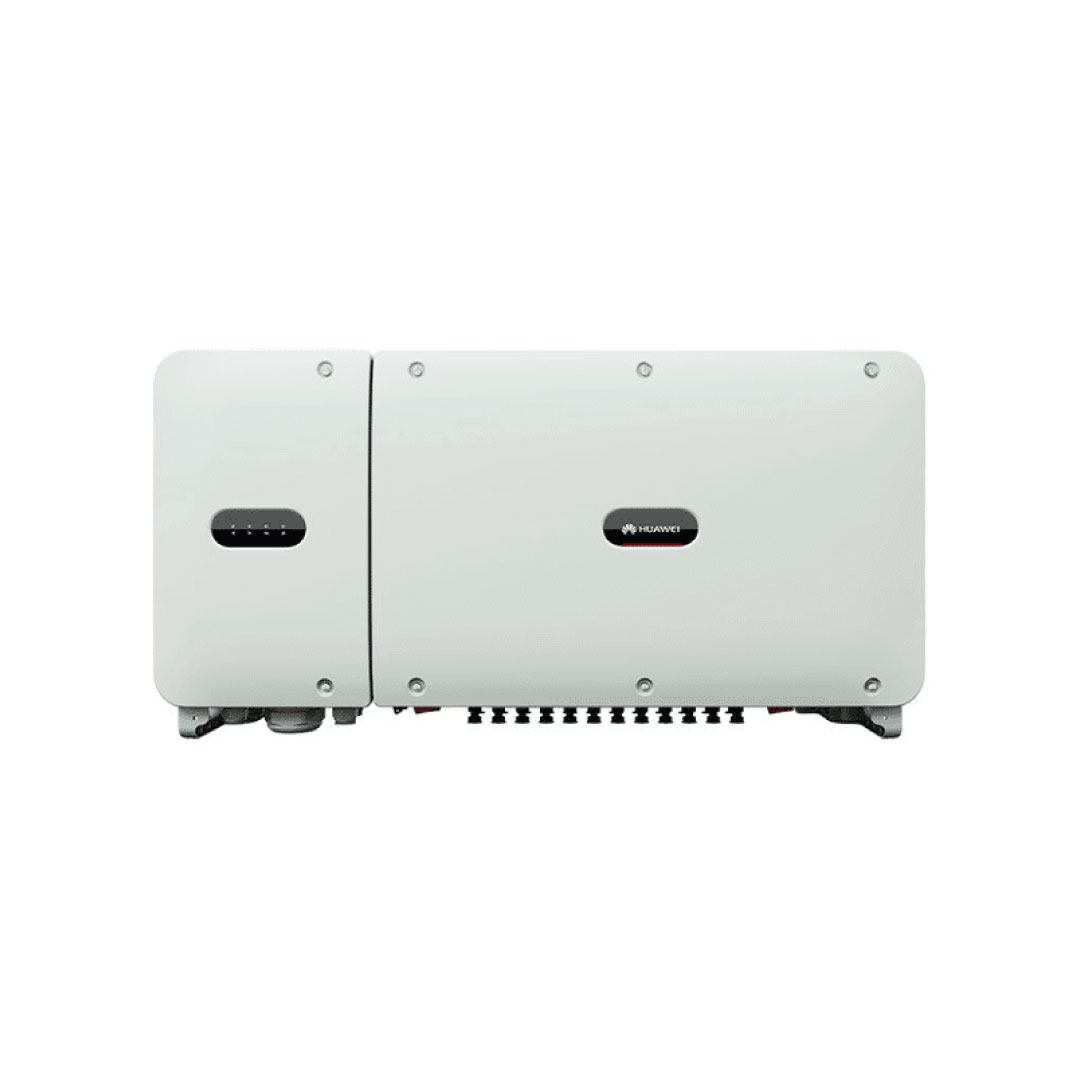

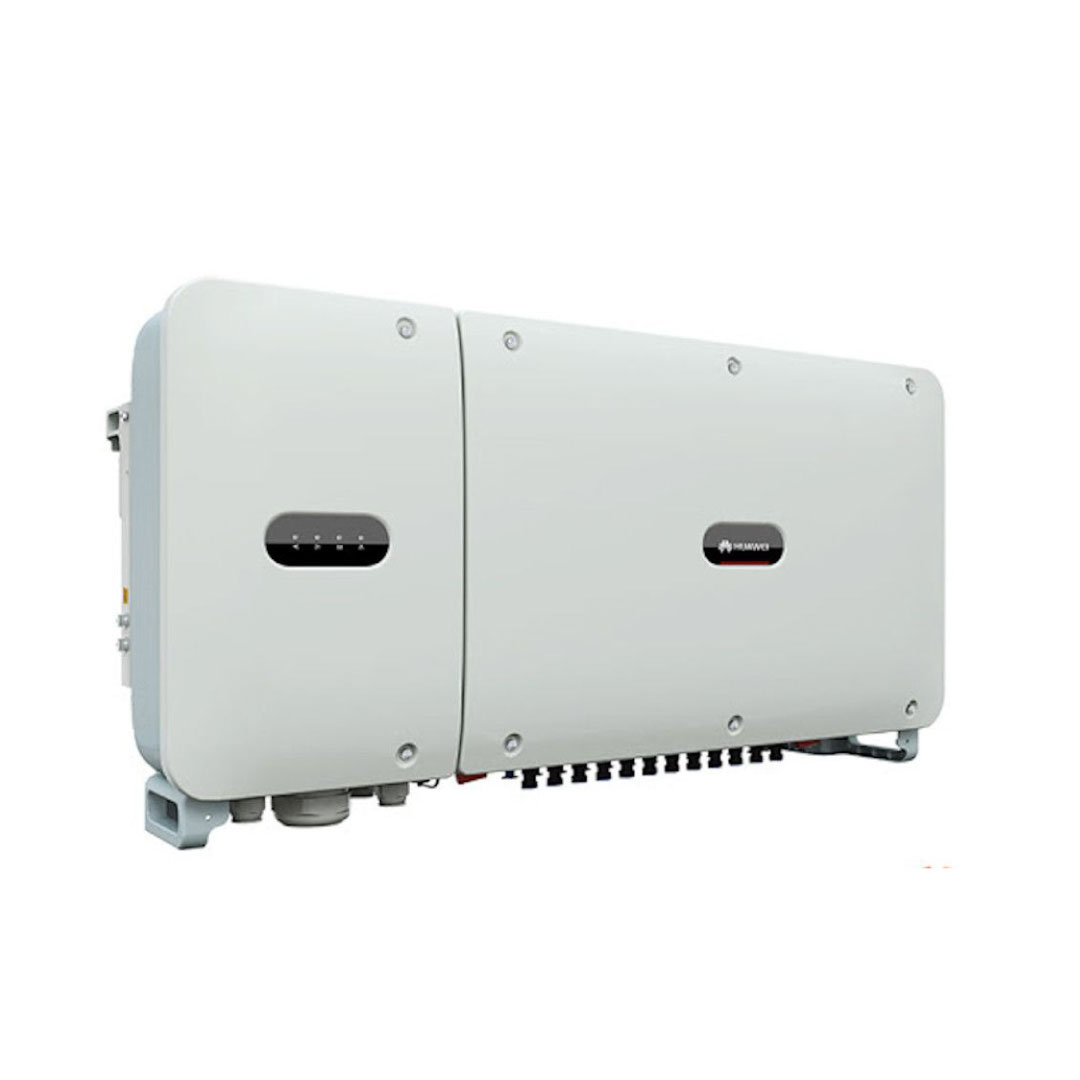

Huawei 60kW SUN2000-60KTL-M0 3-Phase Inverter | Smart, Efficient & Reliable Solar Power Conversion

Short Description

The Huawei SUN2000-60KTL-M0 3-Phase Inverter delivers high efficiency, intelligent control, and advanced safety for commercial and industrial solar PV systems. With up to 98.9% efficiency, 6 MPPT inputs, and AI-driven diagnostics, it ensures optimized performance and long-term reliability across diverse installation conditions.

Key Features

• Rated Output Power: 60kW, 3-phase for commercial and industrial systems.

• High Conversion Efficiency: Up to 98.9% energy conversion rate.

• 6 MPPT Inputs: Maximizes energy harvest under varying sunlight and shading.

• AI-Powered Diagnostics: Predictive maintenance for improved uptime.

• Enhanced Safety: Arc Fault Circuit Interrupter (AFCI) and DC surge protection.

• Natural Cooling: Fanless, silent operation for low maintenance.

• Smart Monitoring: Compatible with Huawei FusionSolar management platform.

• Rugged Build: IP66 protection for reliable outdoor use.

Long Description

The Huawei SUN2000-60KTL-M0 is an intelligent 3-phase string inverter engineered for high-efficiency commercial solar systems. With a rated power output of 60kW and six independent MPPT channels, it delivers superior energy performance, even in installations affected by uneven sunlight or partial shading.

Built on Huawei’s Smart PV technology, the inverter integrates AI-based diagnostics, real-time monitoring, and intelligent communication features through the FusionSolar platform, enabling seamless system management and predictive maintenance.

Its 98.9% conversion efficiency ensures that maximum solar energy is transformed into usable electricity, while its AFCI protection, surge arresters, and IP66-rated design guarantee safe, durable, and long-term operation under challenging environmental conditions.

Ideal for industrial rooftops, commercial solar plants, and distributed grid systems, the SUN2000-60KTL-M0 combines smart control, high yield, and sustainable performance in one robust package.

Applications

• Commercial and industrial solar power systems

• Rooftop and ground-mounted PV installations

• Grid-tied renewable energy projects

• Smart energy and building management systems

Specifications

• Brand: Huawei

• Model: SUN2000-60KTL-M0

• Rated Output Power: 60kW

• Max Efficiency: 98.9%

• European Efficiency: 98.7%

• Number of MPPTs: 6

• Max Input Voltage: 1100V DC

• Nominal Output Voltage: 400V AC, 3-phase

• Communication Interface: RS485, SmartLogger, FusionSolar Cloud

• Protection Level: IP66

• Cooling Method: Natural convection (fanless)

• Safety Features: AFCI, surge protection, insulation resistance monitoring

• Operating Temperature Range: -25°C to +60°C

• Dimensions: 640 × 530 × 270 mm (approx.)

• Weight: ~43 kg

• Country of Origin: Huawei Technologies, China
