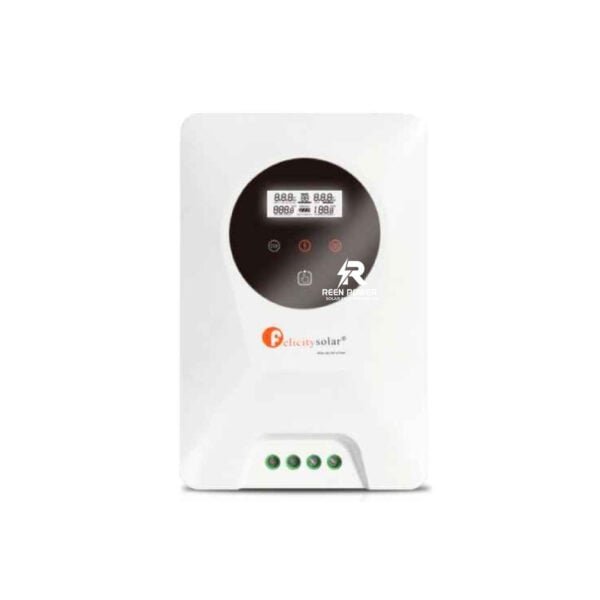

80A 24V/48V MPPT Charge Controller – Felicity Solar SCCM8048

80A 24V/48V MPPT Charge Controller – Felicity Solar SCCM8048

(High-Efficiency Intelligent MPPT Battery Regulator with LCD Display)

Short Description

The Felicity Solar SCCM8048 80A MPPT Charge Controller is a reliable, high-performance solution designed to optimize solar power generation for medium to large-scale residential, commercial, and off-grid systems. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it ensures maximum energy harvest, efficient battery charging, and long-term system stability under varying environmental conditions.

Key Features

• Model: SCCM8048 – Advanced MPPT charge controller for robust solar power management.

• Rated Current: 80A, supporting solar arrays up to 2.0 kW (24V) or 4.0 kW (48V).

• System Voltage: Automatically detects and configures for 24V or 48V battery systems.

• MPPT Tracking Efficiency: ≥ 99.5%, ensuring precise tracking for maximum energy conversion.

• Conversion Efficiency: Up to 98%, minimizing energy losses during charging.

• Display: Clear LCD screen for real-time monitoring of PV input, battery voltage, and charging performance.

• Battery Compatibility: Suitable for LiFePO₄, AGM, gel, and flooded lead-acid batteries.

• Protection Functions: Comprehensive safeguards against overcharging, over-discharging, reverse polarity, short circuit, and over-temperature.

• Communication Interface: RS485/USB ports for remote monitoring and data logging.

• Cooling System: Intelligent temperature-controlled fan ensures efficient thermal regulation.

• Durability: Built with industrial-grade components for reliable operation in harsh conditions.

Long Description

The Felicity Solar SCCM8048 80A MPPT Charge Controller combines intelligent design and cutting-edge MPPT technology to deliver superior energy efficiency and system performance. By continuously tracking the solar array’s optimal power point, it can increase total energy harvest by up to 30% compared to traditional PWM controllers.

Its adaptive multi-stage charging algorithm ensures safe and efficient battery management across various battery types, extending battery lifespan and maintaining optimal energy flow. The integrated LCD display provides clear, real-time feedback on system status and performance metrics, while RS485/USB communication ports allow for remote monitoring and advanced control options.

Engineered for reliability and efficiency, the SCCM8048 is perfect for off-grid solar systems, telecom base stations, commercial buildings, and renewable energy setups. It delivers powerful performance, intelligent energy management, and long-lasting durability—making it an excellent choice for modern solar installations.
