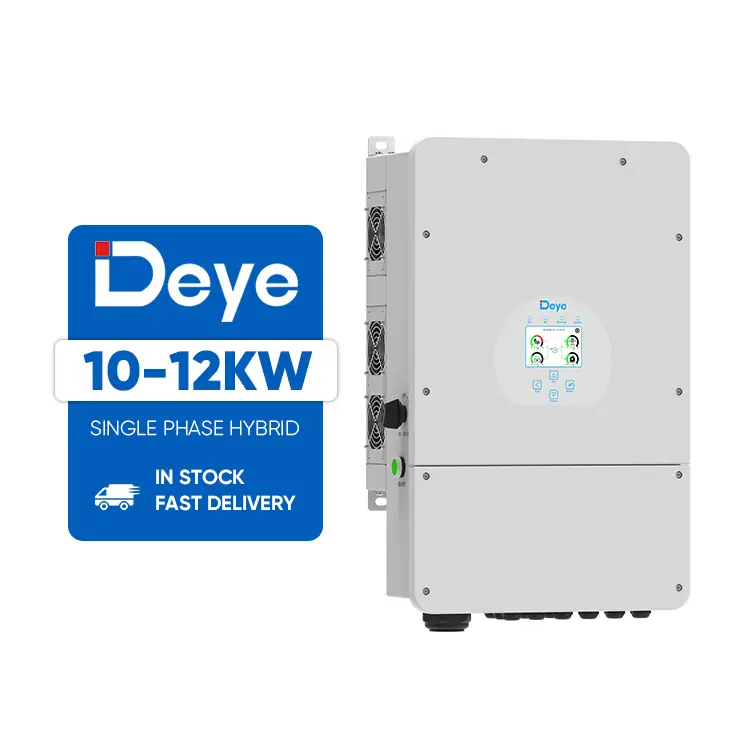

Deye SUN-10/12K-SG02LP1-EU-AM3 Single-Phase Hybrid Solar Inverter Kenya

Deye SUN-10/12K-SG02LP1-EU-AM3 Single-Phase Hybrid Solar Inverter Kenya

The Deye SUN-10/12K-SG02LP1-EU-AM3 Hybrid Inverter is a powerful single-phase low-voltage hybrid solar inverter designed for large homes, offices, farms, businesses and high-demand solar installations in Kenya.

Available in 10kW and 12kW capacities, this Deye hybrid inverter combines solar generation, battery storage, grid power and generator integration in one intelligent energy-management system.

The inverter supports 40–60V lead-acid and lithium-ion batteries, making it suitable for high-capacity 48V battery storage systems.

The 10kW model supports up to 220A battery charging and discharging current, while the 12kW model supports up to 250A, allowing powerful battery charging and backup performance when paired with a correctly sized battery bank.

For lithium batteries, the inverter supports communication with compatible Battery Management Systems (BMS), helping manage battery charging and discharging efficiently.

Both the 10kW and 12kW models feature 3 independent MPPT trackers, giving installers greater flexibility when designing solar arrays with different panel orientations or sunlight conditions.

The 10kW model supports up to approximately 20,000W PV access power, while the 12kW model supports up to approximately 24,000W PV access power, allowing significant solar panel capacity to be connected.

The inverter supports a maximum PV input voltage of 500V, with a wide MPPT voltage range of approximately 150–425V, making it compatible with modern high-power solar panels when correctly string-sized.

The hybrid system can intelligently manage energy from solar panels, batteries and the national grid, helping users maximize solar consumption while maintaining dependable backup power during outages.

It also supports AC coupling, making it possible to add battery storage to suitable existing grid-tied solar installations.

Another major advantage is diesel generator integration. Compatible generator power can be used to supply loads or charge the battery system, providing additional backup flexibility for homes and businesses.

The inverter provides six programmable battery charging and discharging periods, allowing users to control when stored energy is charged or used according to their electricity requirements.

For larger energy systems, up to 16 compatible Deye inverter units can operate in parallel for both on-grid and off-grid applications.

The inverter provides powerful off-grid performance with peak output of up to twice the rated power for approximately 10 seconds, helping accommodate short-duration starting loads from compatible appliances and equipment.

With a maximum efficiency of approximately 97.6% and MPPT efficiency above 99%, the Deye 10–12kW hybrid inverter provides efficient solar power conversion.

It operates on 220/230V single-phase AC output, making it suitable for large single-phase residential and commercial installations.

A colour LCD touchscreen provides easy system monitoring and configuration, while Wi-Fi, RS485 and CAN communication provide options for monitoring and battery integration.

Its IP65-rated enclosure provides protection against dust and water, making the inverter suitable for properly installed indoor or protected outdoor applications.

The Deye SUN-10/12K-SG02LP1-EU-AM3 is ideal for large homes, offices, shops, farms, hotels, schools, apartments and businesses requiring high-capacity solar generation and battery backup.

For customers searching for a Deye 12kW hybrid inverter in Kenya, Deye 10kW single-phase inverter, or a powerful 48V hybrid solar inverter, this series provides an excellent solution for modern solar and energy-storage systems.

Buy the Deye SUN-10/12K-SG02LP1-EU-AM3 Hybrid Inverter in Kenya from Reen Power Shop for quality solar equipment, professional system sizing and installation support.
