Doyin 4SD3/50 (5.5 HP) 3-Phase AC Submersible Borehole Pump – 358M Head, 4.8 m³/h Flow Rate Ordinary Impeller
- Model: 4SD3/50
- Pump Type: AC Submersible Borehole Pump
- Power Rating: 5.5 HP
- Phase: 3 Phase
- Maximum Flow Rate: 4.8 m³/h (4,800 L/h)
- Maximum Head: 358 m
- Recommended Depth Range: 0–338 m
- Suitable Borehole Size: 4-inch and above
- Application: Deep well and borehole water pumping
- Construction: Ordinary Impeller Design
- Installation Type: Vertical Submersible
KSh 55,799.00KSh 80,000.00Chat to OrderDoyin 4SD3/50 (5.5 HP) 3-Phase AC Submersible Borehole Pump – 358M Head, 4.8 m³/h Flow Rate Ordinary Impeller
KSh 55,799.00KSh 80,000.00Doyin 4SDM3/10 (0.75HP) — AC Submersible Borehole Pump
- Model: 4SDM3/10 (0.75HP)
- Type: AC Submersible Deep Well Pump
- Power: 550W / 0.75HP
- Voltage: 220–240V / 50Hz / Single Phase
- Max Flow Rate: 4.8 m³/h (4,800 L/h)
- Maximum Head: 72M
- Recommended Depth: 0–68M
- Minimum Borehole Diameter: 4 inch (100mm)
- Impeller Material: Ordinary high-strength plastic (POM)
- Pump Body Material: AISI 304 Stainless Steel
- Shaft Material: AISI 316 Stainless Steel
- Max Fluid Temperature: 35°C
- Max Sand Content: 0.25%
- Protection Rating: IP X8
- Pump Structure: Multistage
KSh 19,399.00KSh 26,000.00Chat to OrderDoyin 4SDM3/10 (0.75HP) — AC Submersible Borehole Pump
KSh 19,399.00KSh 26,000.00Doyin 4SDM3/13 (1.0HP) — AC Submersible Borehole Pump
- Model: 4SDM3/13 (1.0HP)
- Type: AC Submersible Deep Well Pump
- Power: 750W / 1.0HP
- Voltage: 220–240V / 50Hz / Single Phase
- Max Flow Rate: 4.8 m³/h (4,800 L/h)
- Maximum Head: 93M
- Recommended Depth: 0–88M
- Minimum Borehole Diameter: 4 inch (100mm)
- Impeller Material: Ordinary high-strength plastic (POM)
- Pump Body Material: AISI 304 Stainless Steel
- Shaft Material: AISI 316 Stainless Steel
- Max Fluid Temperature: 35°C
- Max Sand Content: 0.25%
- Protection Rating: IP X8
- Pump Structure: Multistage
KSh 21,399.00KSh 35,000.00Chat to OrderDoyin 4SDM3/13 (1.0HP) — AC Submersible Borehole Pump
KSh 21,399.00KSh 35,000.00Doyin 4SDM3/18 (1.5HP) — AC Submersible Borehole Pump
- Model: 4SDM3/18 (1.5HP)
- Type: AC Submersible Deep Well Pump
- Power: 1,100W / 1.5HP
- Voltage: 220–240V / 50Hz / Single Phase
- Max Flow Rate: 4.8 m³/h (4,800 L/h)
- Maximum Head: 122M
- Recommended Depth: 0–115M
- Minimum Borehole Diameter: 4 inch (100mm)
- Impeller Material: Ordinary high-strength plastic (POM)
- Pump Body Material: AISI 304 Stainless Steel
- Shaft Material: AISI 316 Stainless Steel
- Max Fluid Temperature: 35°C
- Max Sand Content: 0.25%
- Protection Rating: IP X8
- Pump Structure: Multistage
KSh 25,995.00KSh 40,000.00Chat to OrderDoyin 4SDM3/18 (1.5HP) — AC Submersible Borehole Pump
KSh 25,995.00KSh 40,000.00Doyin 4SDM3/22 (2.0HP) — AC Submersible Borehole Pump
- Model: 4SDM3/22 (2.0HP)
- Type: AC Submersible Deep Well Pump
- Power: 1,500W / 2.0HP
- Voltage: 220–240V / 50Hz / Single Phase
- Max Flow Rate: 4.8 m³/h (4,800 L/h)
- Maximum Head: 158M
- Recommended Depth: 0–149M
- Minimum Borehole Diameter: 4 inch (100mm)
- Impeller Material: Ordinary high-strength plastic (POM)
- Pump Body Material: AISI 304 Stainless Steel
- Shaft Material: AISI 316 Stainless Steel
- Max Fluid Temperature: 35°C
- Max Sand Content: 0.25%
- Protection Rating: IP X8
- Pump Structure: Multistage
KSh 27,499.00KSh 40,000.00Chat to OrderDoyin 4SDM3/22 (2.0HP) — AC Submersible Borehole Pump
KSh 27,499.00KSh 40,000.00Doyin 4SDM3/30 (3.0HP) — AC Submersible Borehole Pump
- Model: 4SDM3/30 (3.0HP)
- Type: AC Submersible Deep Well Pump
- Power: 2,200W / 3.0HP
- Voltage: 220–240V / 50Hz / Single Phase
- Max Flow Rate: 4.8 m³/h (4,800 L/h)
- Maximum Head: 215M
- Recommended Depth: 0–203M
- Minimum Borehole Diameter: 4 inch (100mm)
- Impeller Material: Ordinary high-strength plastic (POM)
- Pump Body Material: AISI 304 Stainless Steel
- Shaft Material: AISI 316 Stainless Steel
- Max Fluid Temperature: 35°C
- Max Sand Content: 0.25%
- Protection Rating: IP X8
- Pump Structure: Multistage
KSh 32,899.00KSh 50,000.00Chat to OrderDoyin 4SDM3/30 (3.0HP) — AC Submersible Borehole Pump
KSh 32,899.00KSh 50,000.00Doyin 4SDM3/40 (4.0HP) — AC Submersible Borehole Pump, 287M Head, 4.8 m³/h Flow Rate with Ordinary Impeller
- Model: 4SDM3/40 (4.0HP)
- Type: AC Submersible Deep Well Pump
- Power: 3,000W / 4.0HP
- Voltage: 220–240V / 50Hz / Single Phase
- Max Flow Rate: 4.8 m³/h (4,800 L/h)
- Maximum Head: 287M
- Recommended Depth: 0–271M
- Minimum Borehole Diameter: 4 inch (100mm)
- Impeller Material: Ordinary high-strength plastic (POM)
- Pump Body Material: AISI 304 Stainless Steel
- Shaft Material: AISI 316 Stainless Steel
- Max Fluid Temperature: 35°C
- Max Sand Content: 0.25%
- Protection Rating: IP X8
- Pump Structure: Multistage
KSh 43,995.00KSh 70,000.00Chat to OrderDoyin 4SDM3/40 (4.0HP) — AC Submersible Borehole Pump, 287M Head, 4.8 m³/h Flow Rate with Ordinary Impeller
KSh 43,995.00KSh 70,000.00Doyin 4SDM3/7 (0.5HP) — AC Submersible Borehole Pump
- Model: 4SDM3/7 (0.5HP)
- Type: AC Submersible Deep Well Pump
- Power: 370W / 0.5HP
- Voltage: 220–240V / 50Hz / Single Phase
- Current: 3.7A
- Max Flow Rate: 4.8 m³/h (4,800 L/h)
- Maximum Head: 50M
- Minimum Borehole Diameter: 4 inch (100mm)
- Impeller Material: Ordinary high-strength plastic (POM)
- Pump Body Material: AISI 304 Stainless Steel
- Shaft Material: AISI 316 Stainless Steel
- Max Fluid Temperature: 35°C
- Max Sand Content: 0.25%
- Protection Rating: IP X8
- Pump Structure: Multistage
KSh 17,899.00KSh 30,000.00Chat to OrderDoyin 4SDM3/7 (0.5HP) — AC Submersible Borehole Pump

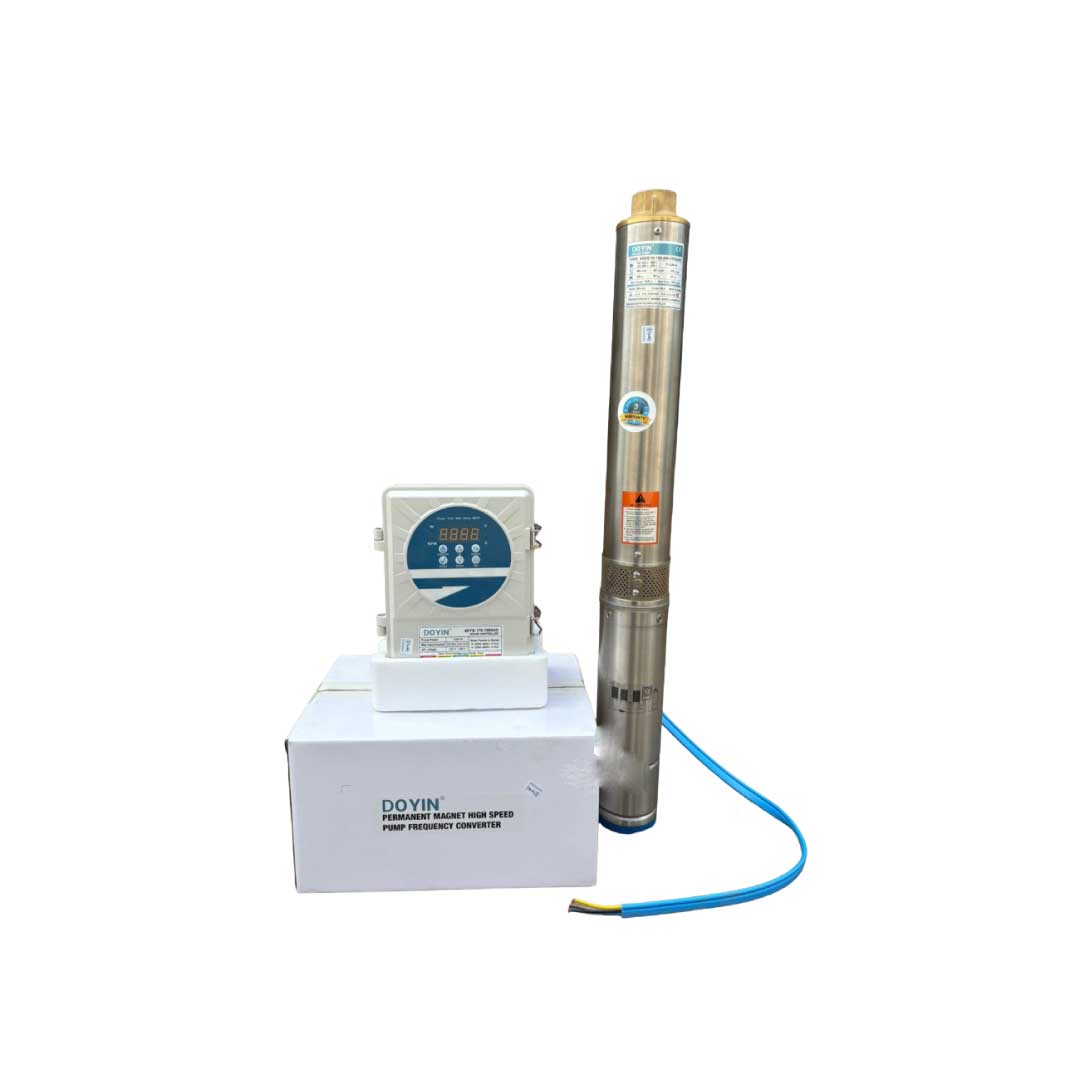

KSh 17,899.00KSh 30,000.00Doyin 4SDS10-1500W (2.0HP) AC/DC Hybrid Borehole Submersible Pump
- Model: 4SDS10-1500W (AD)
- Power: 1,500W (2.0HP)
- Motor Type: High-Efficiency Brushless Motor
- Max Flow Rate: 10.0 m³/h (10,000 L/h)
- Maximum Head: 105M
- Recommended Depth: 0–82M
- Ideal Power Supply: 4×550W
- Power Compatibility: AC (Grid/Generator) and DC (Solar)
- Body Construction: Stainless Steel
- Pump Type: AC/DC Hybrid Submersible Borehole Pump
- Borehole Size: 4-inch
- Suitable Water: Clean/fresh water only
KSh 43,499.00KSh 70,000.00Chat to OrderDoyin 4SDS10-1500W (2.0HP) AC/DC Hybrid Borehole Submersible Pump
KSh 43,499.00KSh 70,000.00Doyin 4SDS10-2200W (3.0HP) AC/DC Hybrid Borehole Submersible Pump
- Model: 4SDS10-2200W (AD)
- Power: 2,200W (3.0HP)
- Motor Type: High-Efficiency Brushless Motor
- Max Flow Rate: 10.0 m³/h (10,000 L/h)
- Maximum Head: 155M
- Recommended Depth: 0–122M
- Ideal Power Supply: 6×550W
- Power Compatibility: AC (Grid/Generator) and DC (Solar)
- Body Construction: Stainless Steel
- Pump Type: AC/DC Hybrid Submersible Borehole Pump
- Borehole Size: 4-inch
- Suitable Water: Clean/fresh water only
KSh 47,899.00KSh 70,000.00Chat to OrderDoyin 4SDS10-2200W (3.0HP) AC/DC Hybrid Borehole Submersible Pump

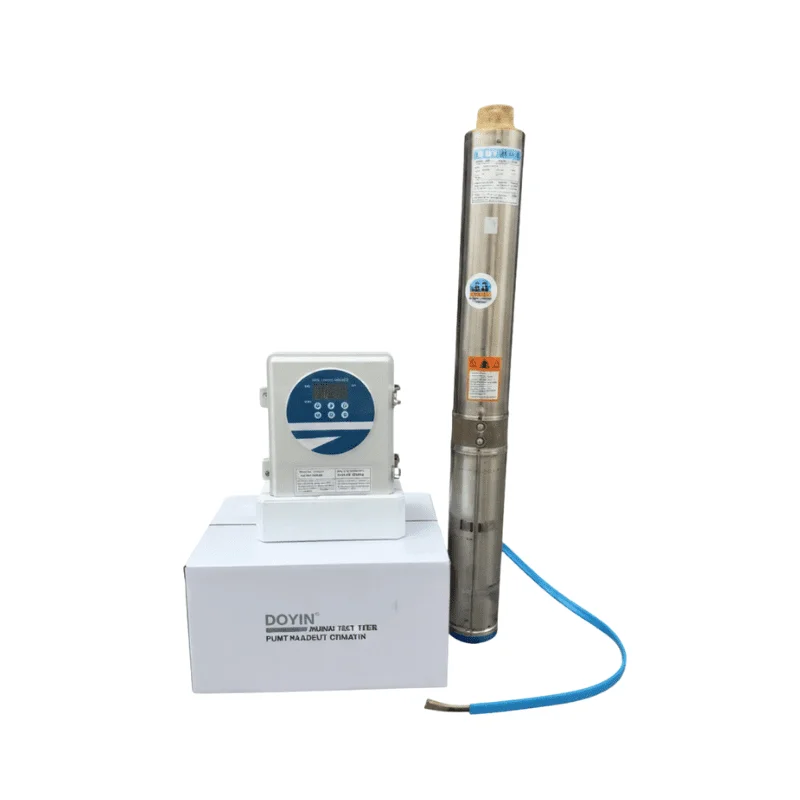

KSh 47,899.00KSh 70,000.00Doyin 4SDS10-3000W (4.0HP) AC/DC Hybrid Borehole Submersible Pump
- Model: 4SDS10-3000W (AD)
- Power: 3,000W (4.0HP)
- Motor Type: High-Efficiency Brushless Motor
- Max Flow Rate: 10.0 m³/h (10,000 L/h)
- Maximum Head: 190M
- Recommended Depth: 0–149M
- Ideal Power Supply: 8×550W
- Power Compatibility: AC (Grid/Generator) and DC (Solar)
- Body Construction: Stainless Steel
- Pump Type: AC/DC Hybrid Submersible Borehole Pump
- Borehole Size: 4-inch
- Suitable Water: Clean/fresh water only
KSh 50,299.00KSh 80,000.00Chat to OrderDoyin 4SDS10-3000W (4.0HP) AC/DC Hybrid Borehole Submersible Pump
KSh 50,299.00KSh 80,000.00Doyin 4SDS5-1500W (2.0HP) AC/DC Hybrid Borehole Submersible Pump
- Model: 4SDS5-1500W (AD)
- Power: 1,500W (2.0HP)
- Motor Type: High-Efficiency Brushless Motor
- Max Flow Rate: 5.0 m³/h (5,000 L/h)
- Maximum Head: 168M
- Recommended Depth: 0–139M
- Ideal Power Supply: 4×550W
- Power Compatibility: AC (Grid/Generator) and DC (Solar)
- Body Construction: Stainless Steel
- Pump Type: AC/DC Hybrid Submersible Borehole Pump
- Borehole Size: 4-inch
- Suitable Water: Clean/fresh water only
KSh 44,995.00KSh 70,000.00Chat to OrderDoyin 4SDS5-1500W (2.0HP) AC/DC Hybrid Borehole Submersible Pump
KSh 44,995.00KSh 70,000.00
